Building a ReSaw-Saw… from HTW semester 4

IMG_3370So a couple years back Shannon Rogers covered the creation of the Roubo style resaw frame saw in semester 4. And I purchased the metal and blades at that time and they’ve been moved around quite a bit since then. I recently got a spot between some projects, and decided to go ahead and do the Roubo style 4′ long, 4″ wide large saw to see how I can make do. I have lots of 8/4 cherry stock and my oldest daughter has asked for some wall units that would benefit from some book matched components. I figured since most of the stalk “could” be done on a bandsaw I’m covered if this doesn’t work out, but in the mean time it’s sure fun to try out these techniques. I’m pretty impressed to find out some manual operations are a lot faster than power tool operations – setup for hand tools is pretty easy sometimes, and sometimes a simple operation setup on the power tool is not.

IMG_3334  IMG_3335

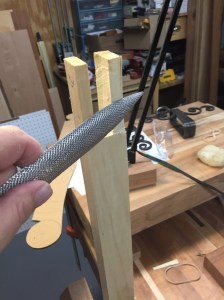

With both sides cut and fit I’m half way through the assembly of the frame. The width of the end piece is 2′, so this is a sizable chunk of frame.

IMG_3357

The dovetails are cut like Shannon describes. Edges are angled, then 3-4 cuts in the center are done to unrestrict the fiber for chop out.



IMG_3358

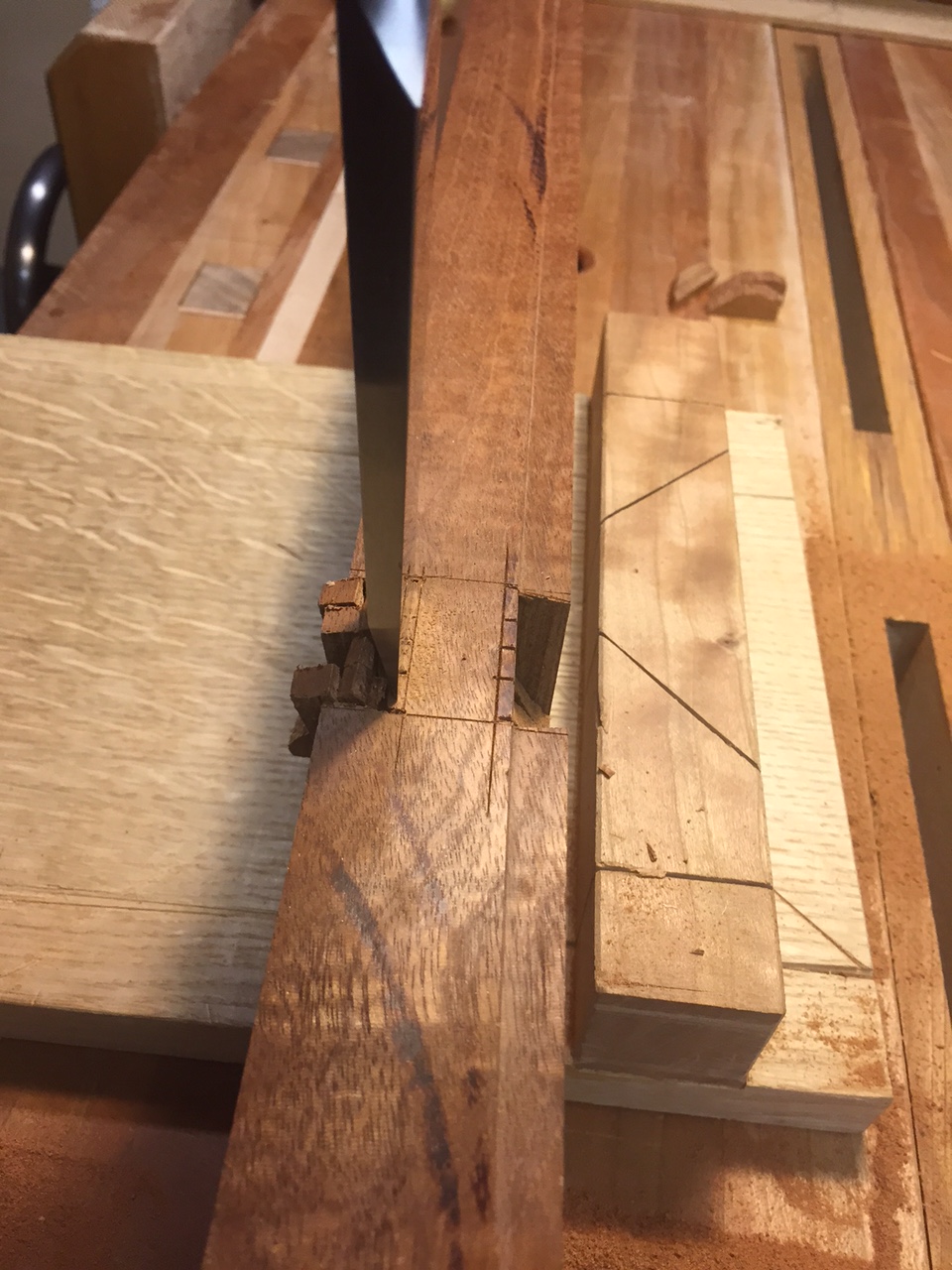

Chisel out the waste.

IMG_3359

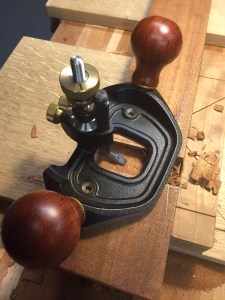

It’s optional, but I love using the router plane to make sure that there are no peaks in the gap floor. Just a tiny variation in this large a gap will make the fit hard to do.



IMG_3361

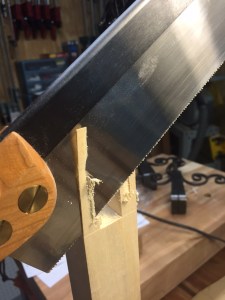

The edges of the tenon are trimmed with a saw (I used a dovetail saw, so it didn’t cut down 2 1/2″ – I had to chop and chisel the corner to clean it up.

FullSizeRender

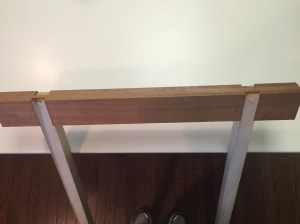

The end cap has the dovetail cuts, and the poplar rails have the pins cut on the outer “tenons” – nope not required – but yep – fun to have done!

IMG_3366

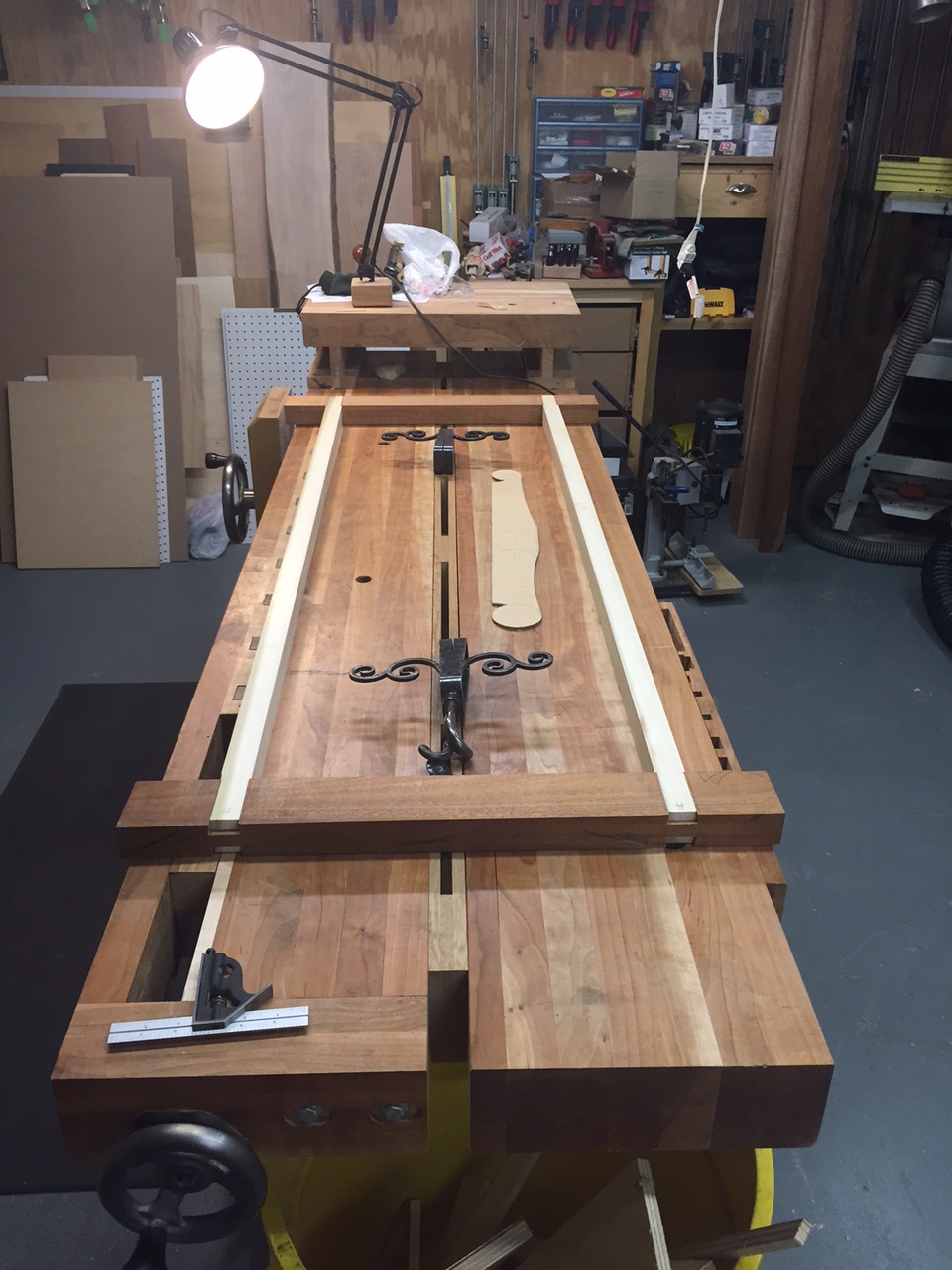

It assembled – so the rough frame fit together. The joint edges aren’t perfect, but they are physically tight and locked into right angles!

Used a bow saw to cut one end, and the bandsaw to cut the other. Turns out the rasp/spokeshave work was about the same for either one. So I decided to bow saw the other end. Then the bowsaw tension string broke... so back to the bandsaw. Oh well.

Used a bow saw to cut one end, and the bandsaw to cut the other. Turns out the rasp/spokeshave work was about the same for either one. So I decided to bow saw the other end. Then the bow saw tension string broke… so back to the bandsaw. Oh well.

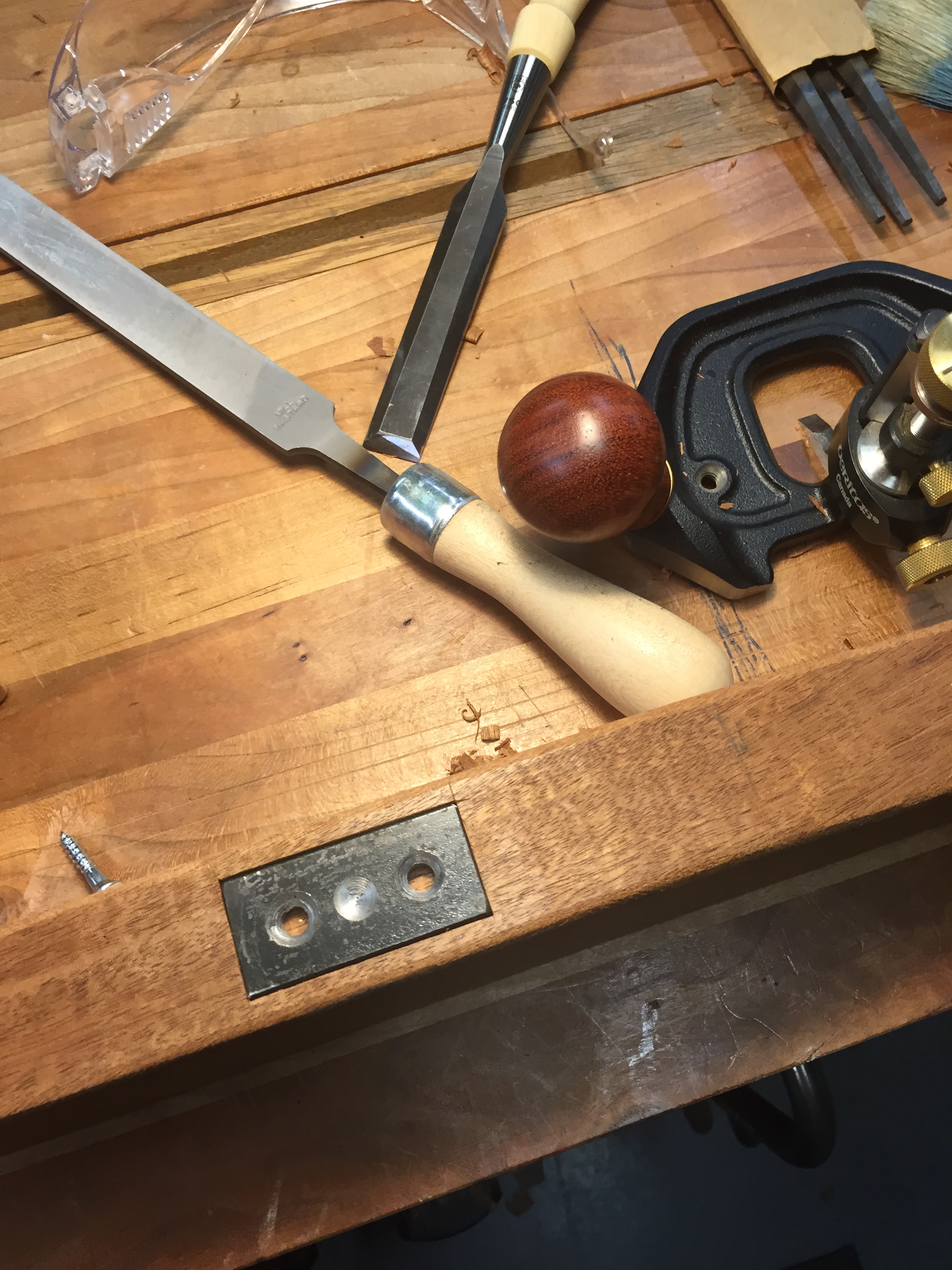

Fitted the drive plate in the "top" handle.

Fitted the drive plate in the “top” handle.

Reassembled the "head" with the rails. Still need to trim and plane the rails - they're still in raw cut mode.

Reassembled the “head” with the rails. Still need to trim and plane the rails – they’re still in raw cut mode.

I did lay out the 3″ blade and marked it for placement of the retaining loops. However, I haven’t found a way to actually get a starting dent in the metal to do the drilling yet… my marker seemed to leave a tiny mark – but the drill bit did NOT stay put at all – I ended up using the drill press on the lowest speed – and had the blade clamped to a 2×4 to keep if from getting caught or moving.

while the saw frame was apart, I did clean up the sides of the rails, then used a 45 degree angle down the edges with a block plane to gentle the edges. It’s just poplar, but looks and feels good non-the-less.

I used the drill press with the carbide drill bit to put in the holes for the loop retainer. Since I didn't have anything to really place the starting point, I clamped the blade to a 2x4, and just set the speed to the lowest and drilled them out. Then of course - I sharpened and set the teeth.

I used the drill press with the carbide drill bit to put in the holes for the loop retainer. Since I didn’t have anything to really place the starting point, I clamped the blade to a 2×4, and just set the speed to the lowest and drilled them out. Then of course – I sharpened and set the teeth.

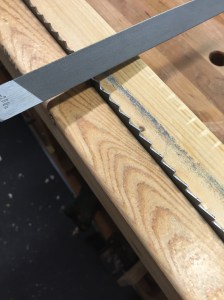

Rather than a fancy blade holder, once more I used a pair of 2×4’s and simply clamped them around the blade, then set and clamped that to the workbench. It’s a 3.5 ppt blade, and it’s big. I didn’t seem to have any problem with sharpening this way – won’t recommend it, but can’t say anything bad about it either. 🙂

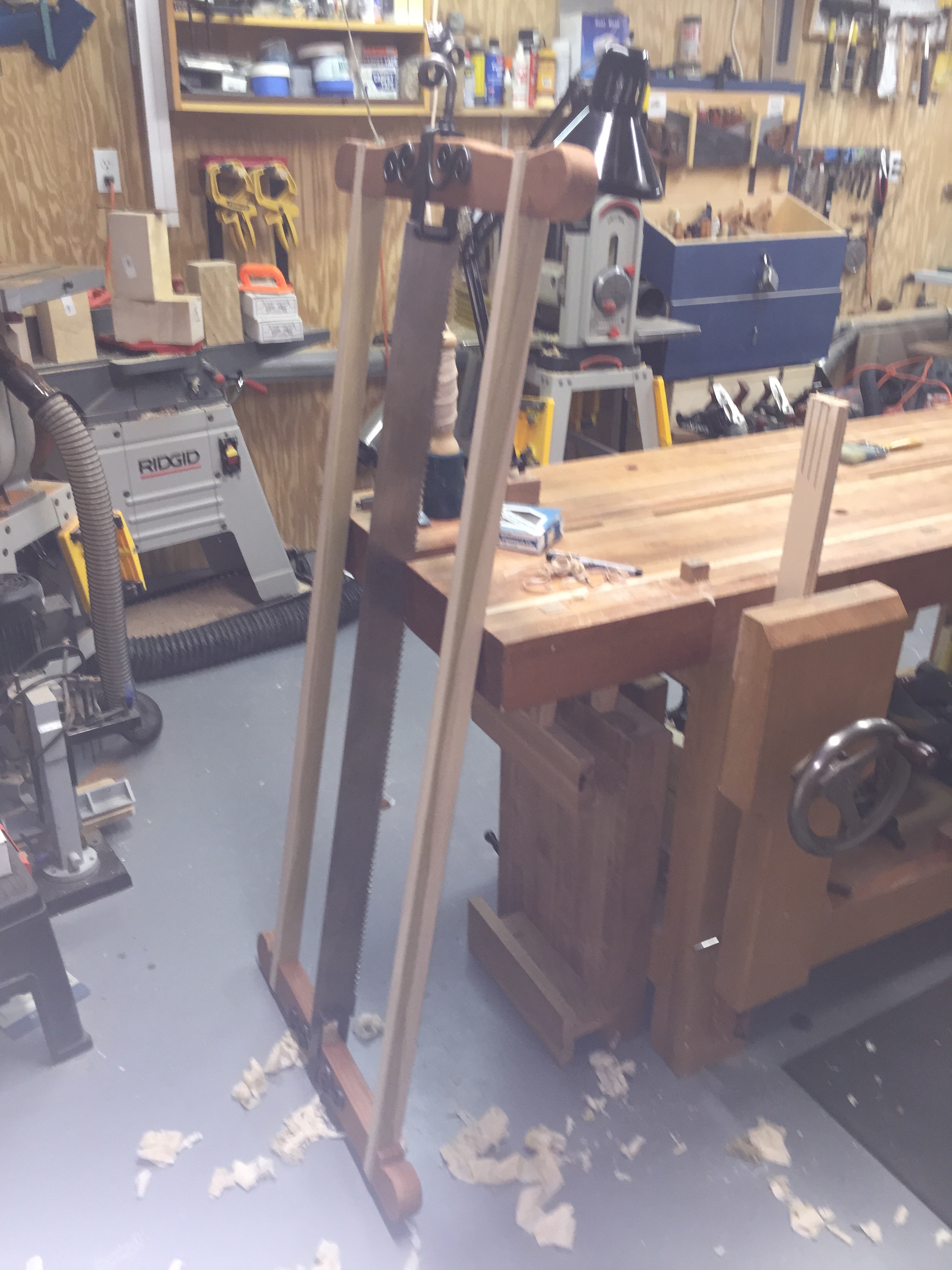

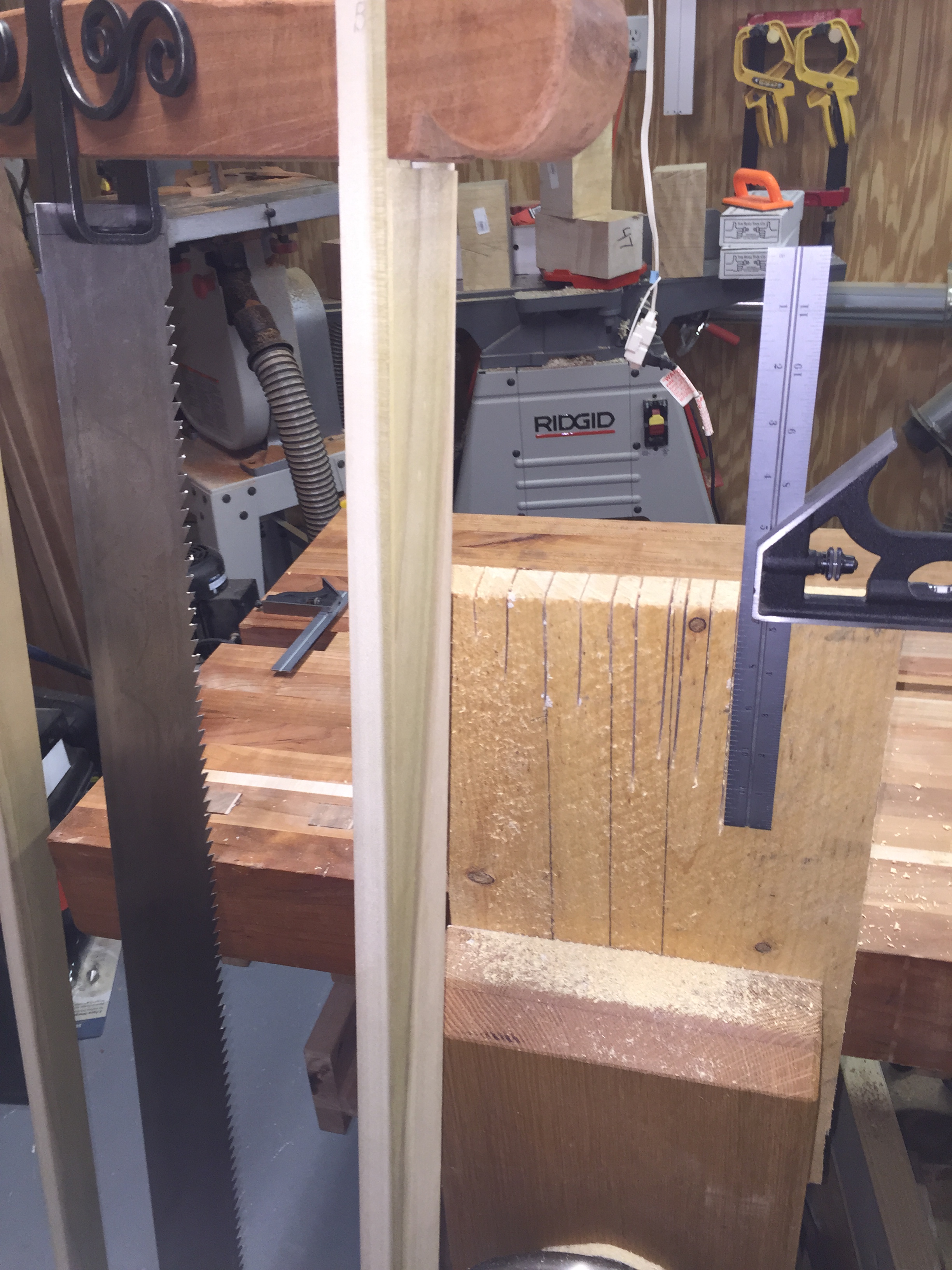

Once the blade was set, I framed it all up, and am now ready to practice (and check) the saw behavior. I tried with a piece of plywood - that just didn't like the 3.5ppt setting at all, so I've switched over to actual hardwood.

Once the blade was set, I framed it all up, and am now ready to practice (and check) the saw behavior. I tried with a piece of plywood – that just didn’t like the 3.5ppt setting at all, so I’ve switched over to actual hardwood.

Yes, the saw is heavy, and it does take some getting used to for getting started. It needs lifted when starting, just like other saws; however the size and weight of this unit makes that more noticeable. Yep – I started sweating just getting things started.

Getting the tooth set correct may be because I was going to easy on the set - am close now, but just a bit more I think needed.

Getting the tooth set correct may be because I was going to easy on the set – am close now, but just a bit more I think needed.

IMG_3388 IMG_3387

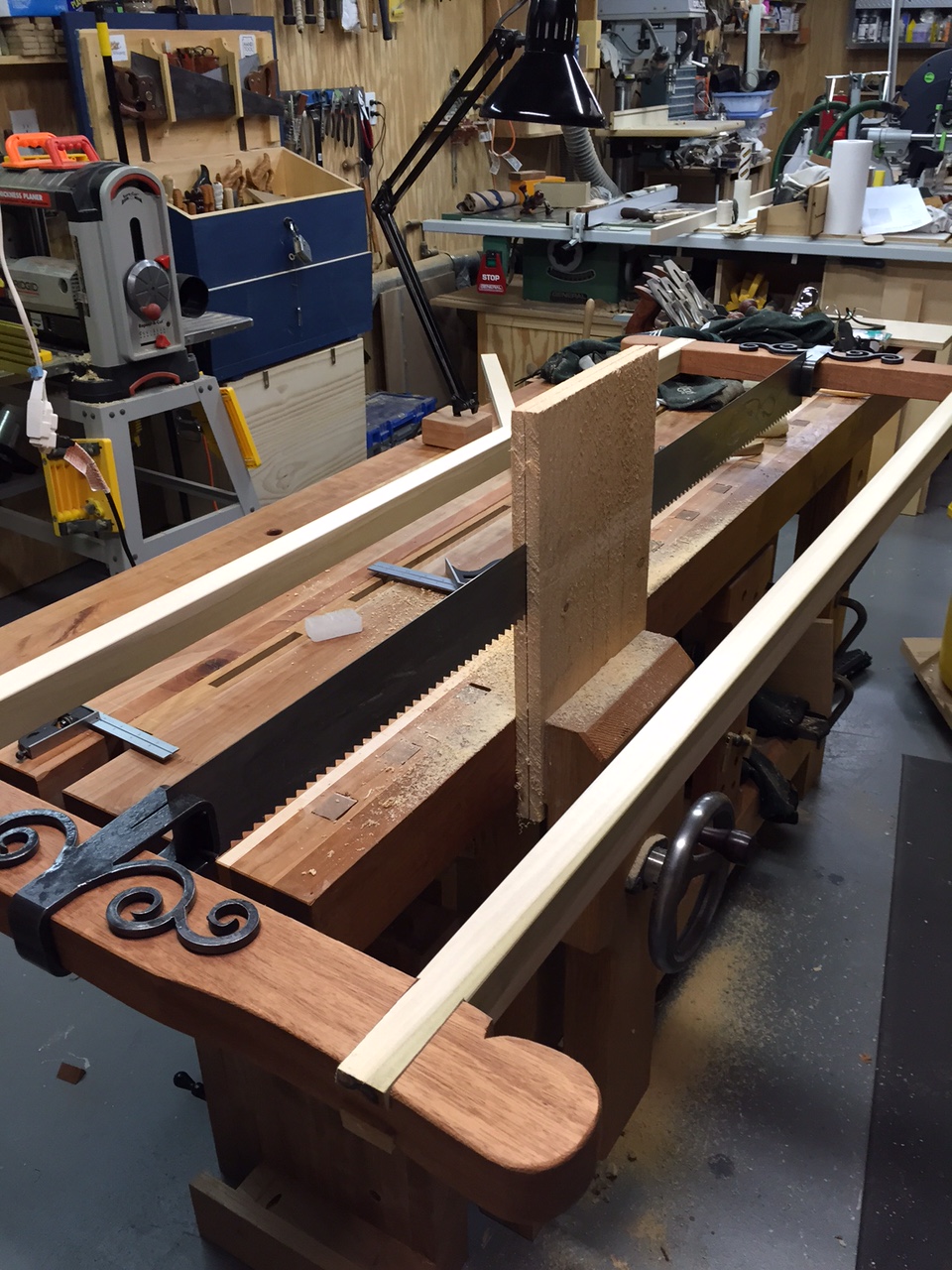

I used the resaw to cut in about 1″ on each edge to set the line. Both sides and across the end grain.

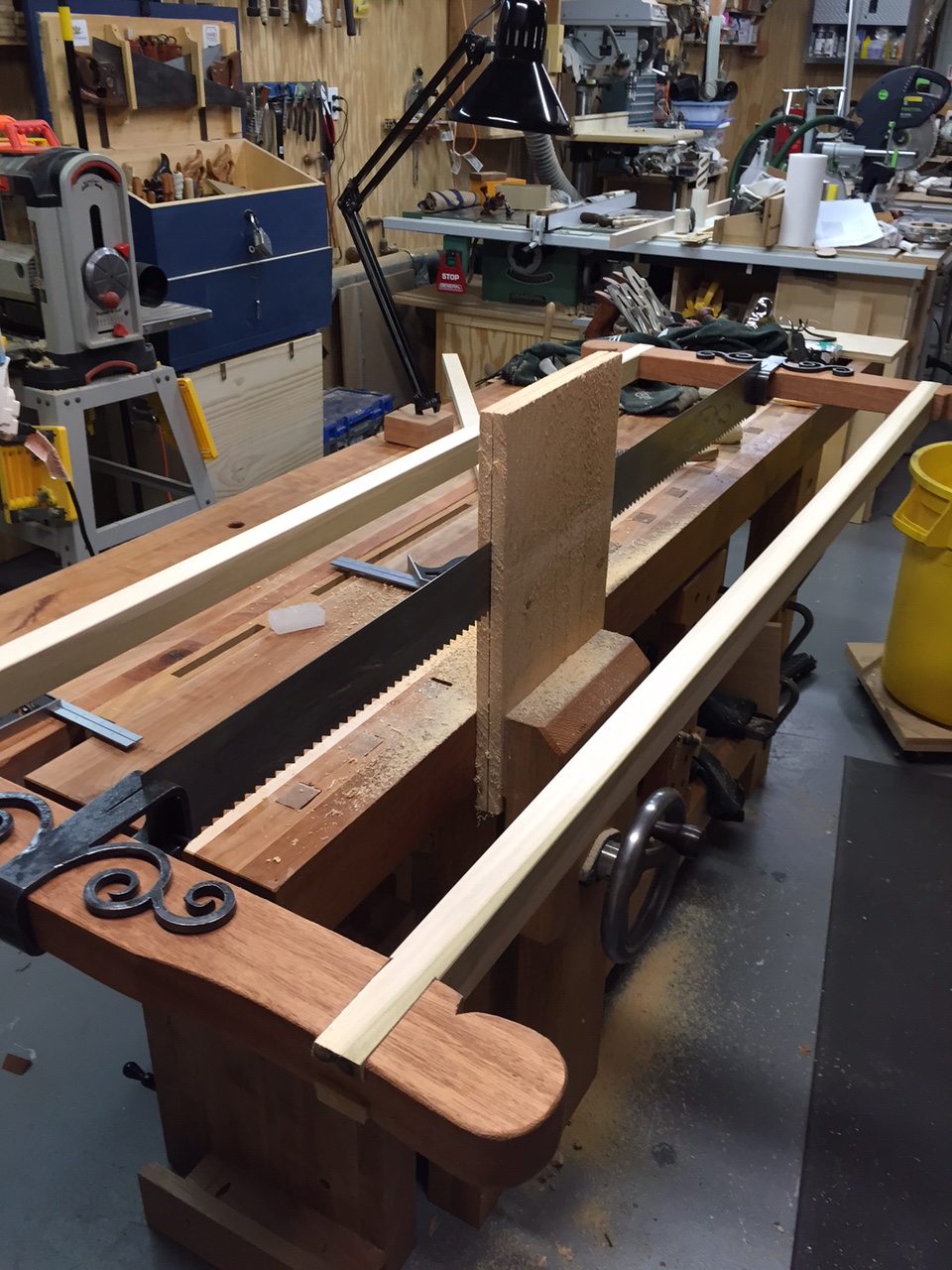

IMG_3389 IMG_3390 IMG_3391 IMG_3392

Then the cutting continued, I rotated every couple inches, but as you can tell, it got right through. The final results:

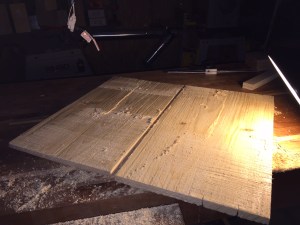

IMG_3393 IMG_3394

Not bad – Yes I sweat good, and yes, this is about as big a board as I could expect to resaw on the bandsaw, but a new range of work is now in sight!
