Add on Graphic (under dev)

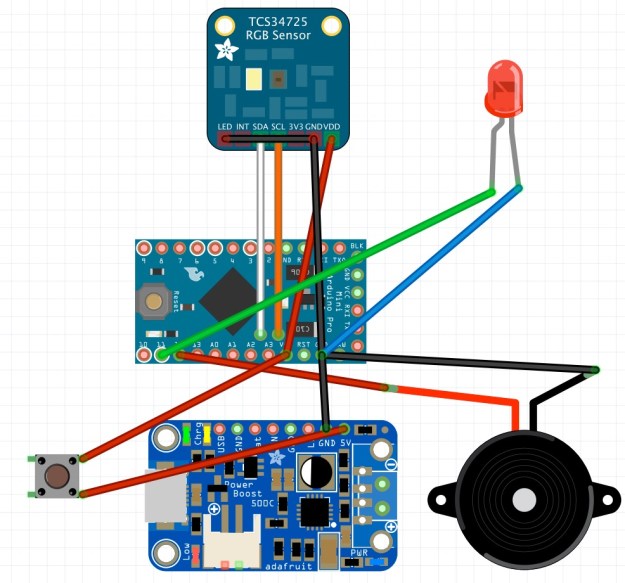

I’m working on drawing up the image to show the construction I’m using. I’ve added the LED to the image, but haven’t built one in yet. (I have used it on the breadboard, just not soldered into place to see how it will fit. (updated to show ground wire connections more accurately)

Untitled
