The following was on the punch list to update:
- cut slot for pivot piece (cantilever) + add clamp
- add recess for linear bearing to bottom of cantilever
- add round piece to loading port of mandrel
- center hole for both mandrel location pieces
- single pivot for the mandrel (up and back?)
- provision more space on platform for bigger servo
- space servo arm/fork on aluminum rod so that the platform is horizontal when the drive in action with cutting head
- move mandrel coupler/motor onto the carriage housing physically (remove the motor mount)
- add four holes for the screws and recess for the motor nose
- move belt to be directly in line with the linear bearing

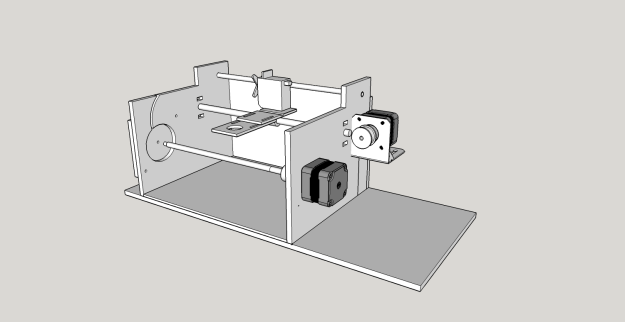

That has resulted in the following model (I used the Nema 17 motor model from the 3dWarehouse by pikachu):
