Shipman Treadle ScrollSaw/Lathe Rebuild

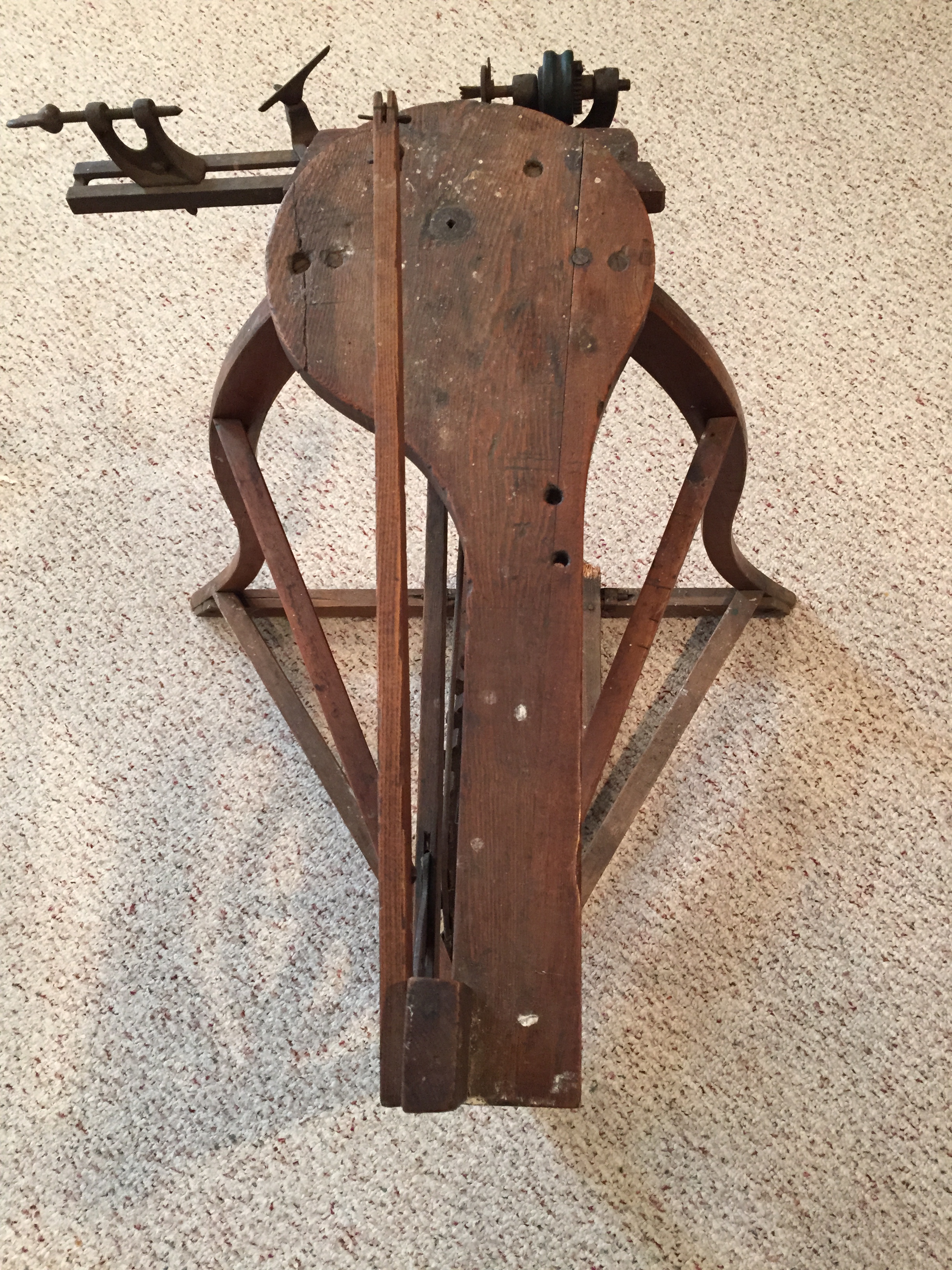

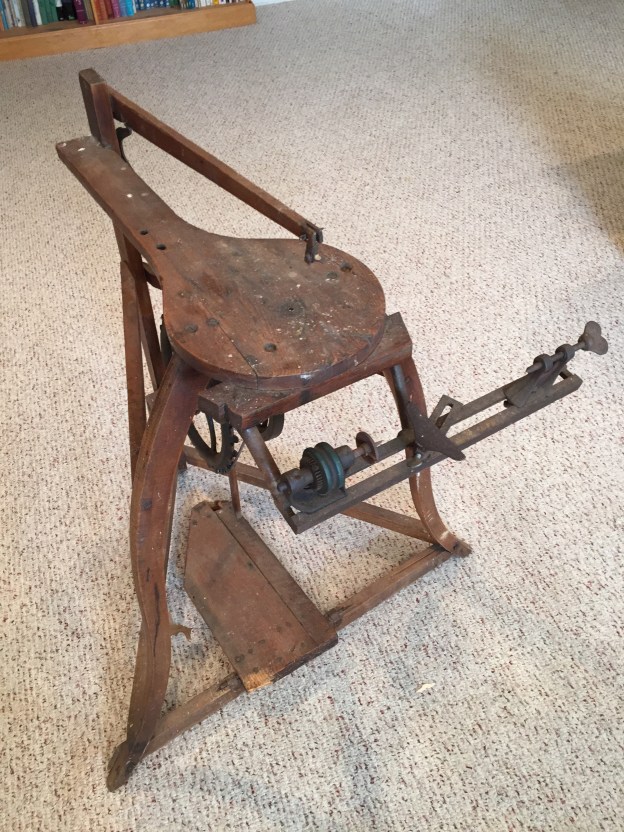

I will be honest – I’ve never tried to IMG_2609rebuild a tool like this before. I’ve refurbished hand tools, and built power tool cabinetry – and done maintenance on most of my equipment. This fella came to me via my wife and kids, who found it in a facebook ad. It is a combination unit – using treadle power – a reciprocating scroll saw, and a tiny little lathe mounted on the front side. My goal is to rebuild it (the wood currently in it has multiple repairs already) and put it back into service.

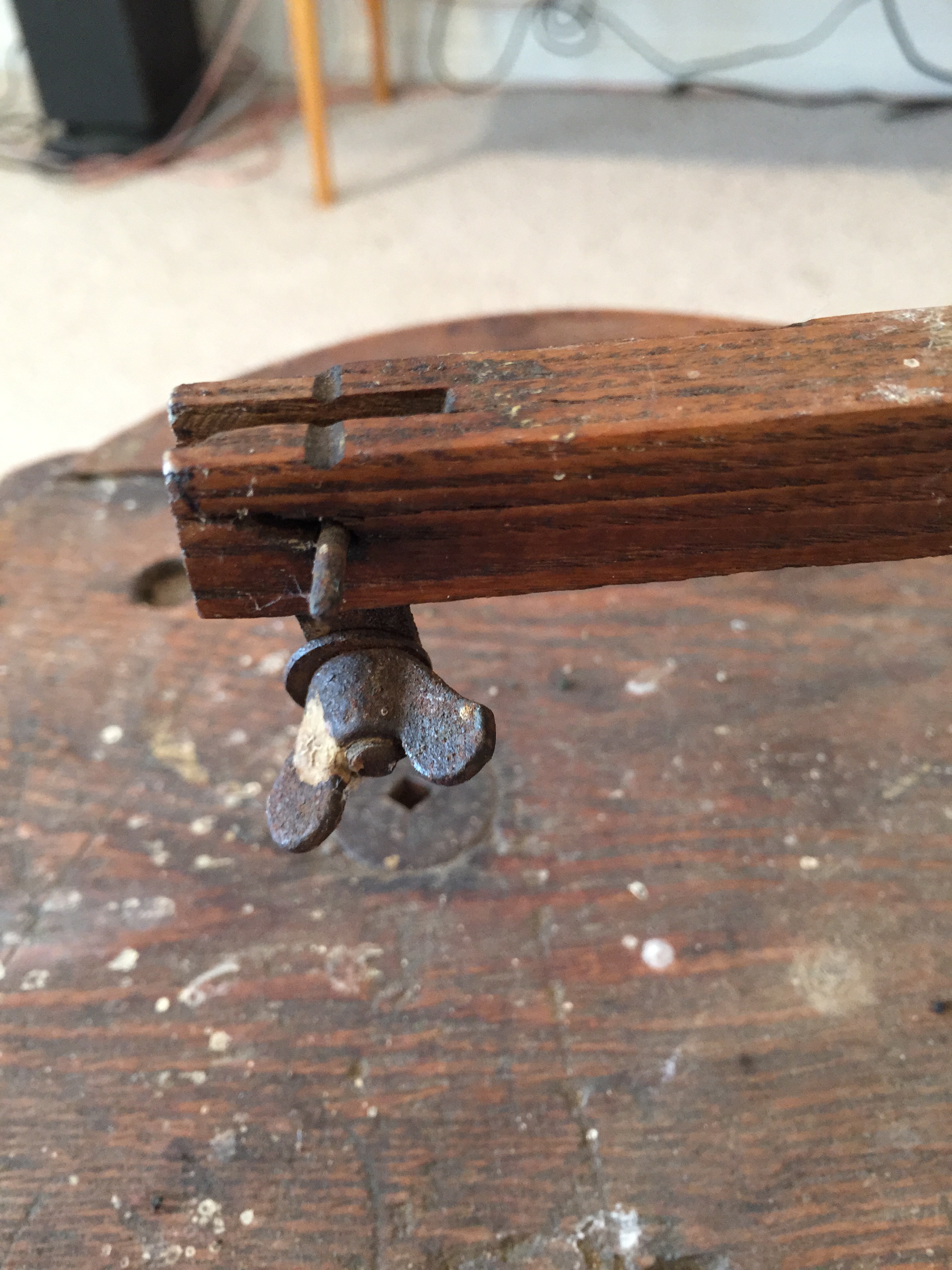

It was identified as an 1876 Shipman Treadle powered Scroll Saw with Lathe attachment. What I am assuming is the blade tension mechanism at the back of the armature is the key identifier. I’ve not seen this arrangement before. I some background information at Vintage Machinery, and will continue to research to find out more.

IMG_2620 IMG_2617 IMG_2616 IMG_2614 IMG_2652 IMG_2651 IMG_2650 IMG_2647 IMG_2646 IMG_2644 IMG_2643 IMG_2642 IMG_2637 IMG_2628 IMG_2623 IMG_2621 IMG_2620 IMG_2617 IMG_2651 IMG_2646 IMG_2642 IMG_2639 IMG_2638 IMG_2628 IMG_2636
